Casa /Prodotti/Regolatore del motore di CC/Weilding Machine 115v/230v DC Controller Thyristor DC Motor Controller Forward Reverse 0+-12 Motor Speed ​​Control

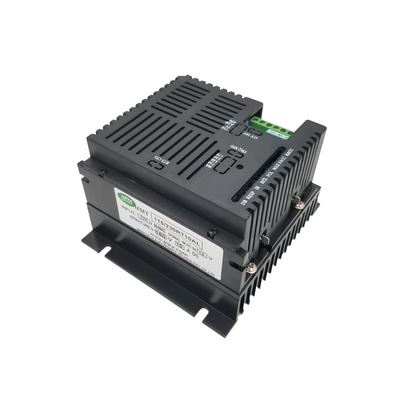

Weilding Machine 115v/230v DC Controller Thyristor DC Motor Controller Forward Reverse 0+-12 Motor Speed ​​Control

1 Piece
MOQ
Weilding Machine 115v/230v DC Controller Thyristor DC Motor Controller Forward Reverse 0+-12 Motor Speed ​​Control
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: 115/230DR10AL-02
Application: Weilding machine
Voltage: 110V/220V
Rated Power: 370w/750w
Current: 10a
Product name: DC Motor Speed Controller
Model: 115/230RT10AL
Informazioni di base
Model Number: 115/230DR10AL-02, 115/230RT10AL
Termini di pagamento e spedizione
Descrizione di prodotto

115v/230v dc motor speed controller Output 90/180vdc SCR dc motor controller 375w 750w 180v motor controller

115/230RT10AL

Product Overviews

MMT-115/230RT Series DC motor CONTROLLER is a kind of speed CONTROL product developed and produced by adopting past successful experience and combining modern advanced technology. This series of products have met international standard requirements and are sold to many countries. This driver adopts thyristor chopping control principle and uses independent trigger mode. Even there is no velocity feedback, high speed ratio can be achieved to make it more accurate and reliable.

Excellent performance, reliable quality and high cost performance make it a strong performer in DC motor driver field and it was widely used in plastic machinery, food machinery, cable equipment, machining, paper printing, testing equipment, laboratory equipment and mixing equipment, etc.

Product Features

SMT technology, small size
Good following features, rapid respond speed
Wide speed ratio, strong mechanical features
Applicable to permanent magnet ,separate excitation type and DC torque motor
Current setting and current-limiting protection (continuous operation setting current)
Large low speed output moment
Over-current protection function
Soft start, soft stop setting function
Selection of speed mode, torque mode
Normally open, close selection of enable signal
Selection of input, output voltage switch
Driver speed governing controlled by standard signal input 0-5V or 10K potentiometer
Product performance

input voltage AC 115V/230V±10%
output voltage DC: 0~90V 0-110V 0-160V 0-180V 0-220V (can be set)
rated output current 10A
speed ratio 80:1
output voltage accuracy ≤0.1%
soft starting time 0.2S-20S
soft stopping time 0.2S-10S
Forwar&reverse Yes
control 0-±12V
Detailed Images

Wiring

Technology
